Permanent Magnets for DC Motors: Choosing Between Arc Ferrite Magnets and Other Options

In the world of DC motors, permanent magnets play a crucial role in determining performance, efficiency, and cost-effectiveness. Among the various options available, arc ferrite magnets stand out for their unique properties and wide range of applications. This article explores the different types of permanent magnets, including arc ferrite magnets, and provides insights into their use in DC motors.

1. What Are Permanent Magnets for DC Motors?
Permanent magnets for DC motors are essential components that generate the magnetic field required for motor operation. Unlike electromagnets, these magnets retain their magnetism without the need for an external power source. Permanent magnets are typically classified into several types, including arc ferrite magnets, neodymium magnets (NdFeB), and alnico magnets. Each type has specific properties that make it suitable for different applications.

2. Why Choose Arc Ferrite Magnets?
Arc ferrite magnets, also known as ceramic magnets, are among the commonly used permanent magnets for DC motors. They are made from a combination of iron oxide and ceramic materials, which gives them unique characteristics:

Cost-Effectiveness: Arc ferrite magnets are significantly cheaper to produce compared to neodymium magnets, making them ideal for large-scale or budget-sensitive projects.
Durability: These magnets are resistant to corrosion and demagnetization, making them suitable for harsh operating environments.
Stability: They provide a stable magnetic field over a wide range of temperatures, ensuring consistent motor performance.
These features make arc ferrite magnets a preferred choice for DC motors in applications like household appliances, automotive systems, and industrial machinery.

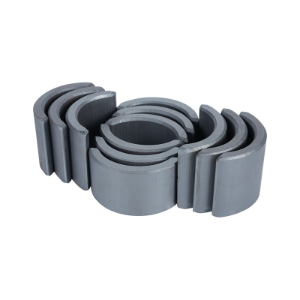

Cleaning Machine Magnetic Tiles

3. Comparing Arc Ferrite Magnets with Other Permanent Magnets
When selecting a permanent magnet for your DC motor, it's important to consider how arc ferrite magnets compare to other options:

a. Neodymium Magnets (NdFeB)
Advantages: Neodymium magnets offer the magnetic strength and are ideal for compact motors requiring high power density.
Disadvantages: They are more expensive and less resistant to high temperatures compared to arc ferrite magnets.
b. Alnico Magnets
Advantages: Alnico magnets have temperature stability and are often used in precision instruments.
Disadvantages: They are weaker in terms of magnetic field strength and are more expensive than arc ferrite magnets.
c. Arc Ferrite Magnets
Advantages: Cost-effective, corrosion-resistant, and durable, making them suitable for mass-market applications.
Disadvantages: They have lower magnetic strength compared to neodymium magnets, which can limit their use in high-performance motors.
4. Applications of Arc Ferrite Magnets in DC Motors
Arc ferrite magnets are widely used in DC motors due to their affordability and reliability. Common applications include:

Automotive Systems: They are used in windshield wipers, power windows, and cooling fans.
Industrial Machinery: Suitable for conveyor belts, pumps, and mixers that require robust and cost-effective motors.
Household Appliances: Found in vacuum cleaners, washing machines, and other home appliances.
Renewable Energy Systems: Used in low-cost generators and wind turbines.
Their versatility and cost advantages make arc ferrite magnets a go-to solution for manufacturers looking to balance performance and budget.

5. Factors to Consider When Choosing Permanent Magnets for DC Motors
Selecting the right permanent magnet for a DC motor depends on several factors:

Performance Requirements: High-power motors may require neodymium magnets, while budget-friendly applications can use arc ferrite magnets.
Environmental Conditions: If the motor operates in a corrosive or high-temperature environment, arc ferrite magnets are more suitable.
Cost Constraints: For projects with tight budgets, arc ferrite magnets offer an economical yet reliable solution.
Size and Weight: Compact motors may benefit from the high power density of neodymium magnets, but arc ferrite magnets are sufficient for larger motors with less space constraints.
6. Why Arc Ferrite Magnets Are a Popular Choice
The popularity of arc ferrite magnets stems from their ability to deliver consistent performance at an affordable price. While other magnets like neodymium may offer higher strength, the durability and cost-effectiveness of arc ferrite magnets make them an ideal choice for many DC motor applications. Additionally, their resistance to demagnetization and corrosion ensures long-term reliability.

7. The Future of Permanent Magnets in DC Motors
As industries push for more energy-efficient and sustainable solutions, permanent magnets like arc ferrite magnets will continue to play a vital role in DC motor design. With advancements in material science, these magnets are expected to become even more efficient and versatile, meeting the demands of modern technology.

Choosing the right permanent magnet for your DC motor is crucial for achieving performance and cost-efficiency. Arc ferrite magnets offer a unique combination of affordability, durability, and stability, making them a choice for a wide range of applications. While neodymium and alnico magnets have their advantages, arc ferrite magnets remain the preferred option for many industries due to their balance of performance and cost.

Whether you're designing motors for household appliances, automotive systems, or industrial equipment, arc ferrite magnets provide a reliable and cost-effective solution. Understanding the strengths and limitations of each type of permanent magnet will help you make an informed decision for your specific application.
